UAV01-The Loitering Munition System

The loitering munition system is a weapons and aerial surveillance system. It allows for faster reaction times against concealed or hidden targets that emerge for short periods without placing high-value platforms near the target area, and it also enables more selective targeting.
The loitering munition is a design that falls between a large attack drone and a small reconnaissance drone. It features a relatively long stationary flight time over the target area, allowing the operator to select high-value targets and conduct precise reconnaissance and attacks both indoors and outdoors.

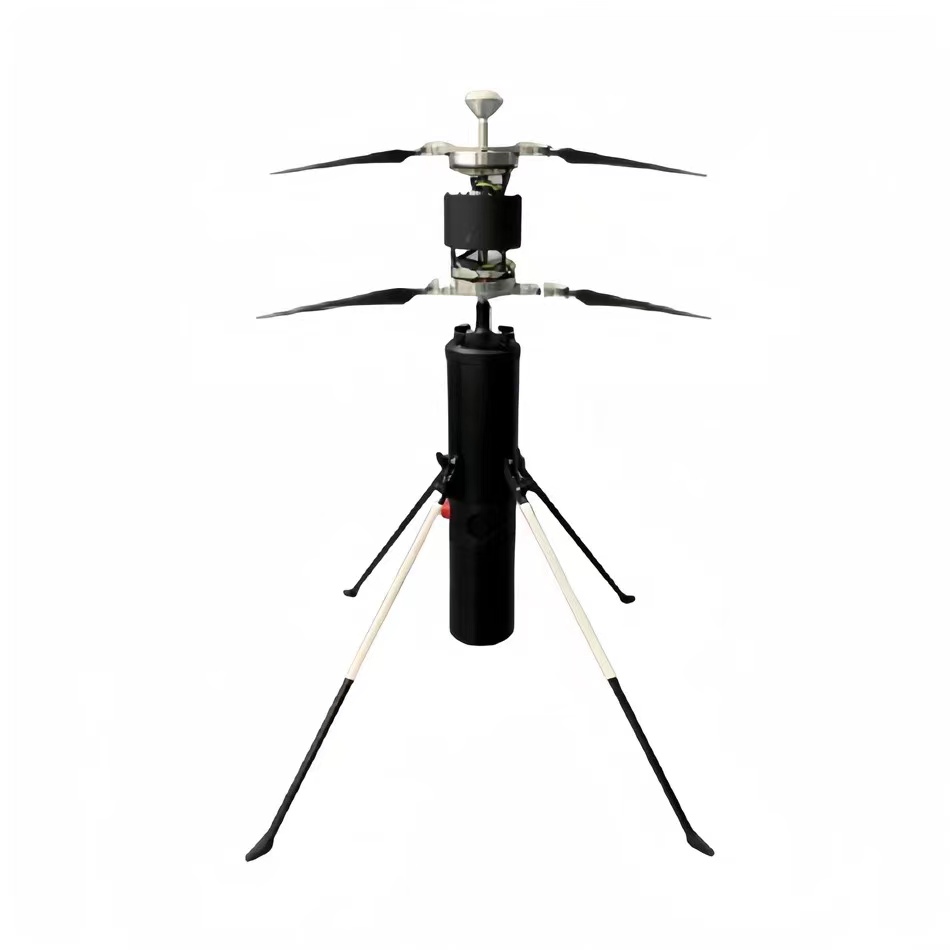

The overall appearance of the UAV adopts a cylindrical design, which consists of foldable rotors, flight platforms, data links, and intelligent electro-optical pods.

FEATURES：
Automatic Target Identification, Tracking, and Positioning: Capable of integrated reconnaissance and strike operations.
Load Capacity: Can carry up to 3kg.
Coaxial Rotor Design: Compact, portable, and highly concealable, suitable for precise and rapid strikes against ground vehicles and small surface vessels. Ideal for single-soldier operations.
Operational Modes: Supports autonomous flight and human-in-the-loop control modes.
High Adaptability to Complex Battlefield Environments: Equipped with multiple sensors, including a binocular visible light CCD, infrared CCD, and laser rangefinder for precise target detection, guidance, and environmental awareness.
Image and Control Link Transmission: Allows for real-time image and control signal transmission.
Versatile Applications: Suitable for military units, special police forces, and firefighting teams for use in counter-terrorism, urban warfare, patrols, rescue missions, transportation, firepower strikes, covert sniping, close reconnaissance, battlefield assessment, and more.

We make custom UAVs tailored to your needs. Contact us for pricing and customization options.

Standard Version (Non-Custom)
Unfolded size：750mm*750mm*500mm
Length of fuselage：110mm*110mm*500mm
Operational Range of UAV：<10-12KM Stall Speed：(m/s) 25 m/s
Cruise Speed：(m/s) 7 m/s
Hover accuracy：<0.7 MGPS mode Endurance(Operate with No-load)： ≯28 minutes 16000mAh battery + pod + AI module
Endurance with 1kg load ≯12 minutes, 10000mAh battery + pod + AI module
Endurance with 1kg load ≯20 minutes, 16000mAh battery + pod + AI module
Endurance with 1.5kg load 15 minutes 16000mAh battery + pod + AI module
Endurance with 3kg load ≯8 minutes, 16000mAh battery + pod + AI module
